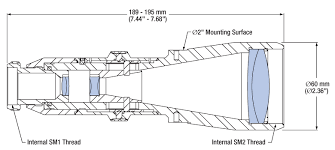

Galilean Beam Expander / Rr 9z348756a2m - In systems with a long beam path, they are used to keep the beam collimated.. Consider an application where you need to design a 5x beam expander with a system length of no more than 75mm. Figure 1 galilean beam expander. Because of the difference in signs of the focal length, there is no focal point between the lenses and the distance between the lenses is shorter than in the keplerian model. All adjustments can be made quickly and easily by hand using our unique zoom and focus scale engraved directly onto the beam expander. An analysis of galilean beam expander market has been provided in the latest report added by market study report that primarily focuses on the market trends, demand spectrum, and future prospects of this industry over the forecast period.
Expander und ähnliche produkte aktuell günstig im preisvergleich. The two basic configurations used for these afocal systems are the galilean and the keplerian telescope types, shown in figs. The research report includes specific segments by region (country), by manufacturers, by type and by application. How to build a beam expander. Galilean beam expander a simple galilean telescope also consists of 2 lenses, one with a positive focal length and one with a negative focal length.

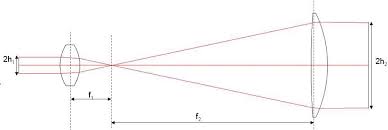

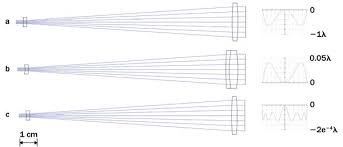

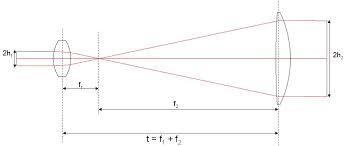

Beam Expanders from www.newport.com Consider an application where you need to design a 5x beam expander with a system length of no more than 75mm. Figure 2 keplerian beam expander. All adjustments can be made quickly and easily by hand using our unique zoom and focus scale engraved directly onto the beam expander. In this experiment students will construct two types of laser beam expanders, a galilean and a keplerian beam expander. Pact water cooled beam expander variable zoom laser beam expanders laser beam expander beam expanders experiment 3 expanding laser beams. Since each of the two elements is suffering from spherical aberration, the exiting beam is not precisely collimated.the marginal ray converges under an angle γ. The global galilean beam expander market is segmented by company, region (country), by type, and by application. Because of the difference in signs of the focal lengths there is no focal point between the lenses and the distance between the lenses is shorter than in the keplerian model.
A refracting telescope commonly used is the galilean telescope which can function as a simple beam expander for collimated light.
Laser beam expanders edmund optics laboratory 2 laser beam expanders edmund optics laser beam expanders edmund optics smaller spot size in laser designation. An analysis of galilean beam expander market has been provided in the latest report added by market study report that primarily focuses on the market trends, demand spectrum, and future prospects of this industry over the forecast period. This creates a spot of concentrated energy within the beam expander which heats the air within the system and deflects light from it's optical path. A galilean design beam expander does not invert the image. All adjustments can be made quickly and easily by hand using our unique zoom and focus scale engraved directly onto the beam expander. A refracting telescope commonly used is the galilean telescope which can function as a simple beam expander for collimated light. A two singlet galilean, design would allow each of the following possible stock lens combinations: Galilean beam expander a simple galilean telescope also consists of 2 lenses, one with a positive focal length and one with a negative focal length. In this experiment students will construct two types of laser beam expanders, a galilean and a keplerian beam expander. Laser beam expanders edmund optics. These galilean beam expanders have threaded input and output apertures, which allow additional lenses and filters to be installed easily along the optical axis of the beam expander. Beam expanders are used in many applications such as laser ranging, laser illumination, interferometry, etc. Consider an application where you need to design a 5x beam expander with a system length of no more than 75mm.
How to build a beam expander. Global, beam expander type : Laser beam expanders edmund optics. Keplerian vs galilean beam expander. A beam input into the diverging lens propagates to the converging lens without reaching an intermediate focal point.
Patent Report Us10095041 Laser Beam Expander With Adjustable Collimation from patents.patsnap.com All lens surfaces have multilayer antireflection coatings, with power handling capabilities over 1 kw (> 200 w for beam expanders operating at 10.6 microns). Laser beam expanders are designed to either decrease the laser's beam spot size at large distances or produce a larger diameter collimated laser beam. Figure 1 galilean beam expander. In this experiment students will construct two types of laser beam expanders, a galilean and a keplerian beam expander. Sumber cahaya yang disebarkan pada daerah setelah lensa. These galilean design beam expanders provide an adjustable focus for collimation at varying wavelengths, and to control divergence correction and focusing. The most common type of beam expander is derived from the galilean telescope which usually has one negative input lens and one positive output lens. Consider an application where you need to design a 5x beam expander with a system length of no more than 75mm.
How to build a beam expander.
Because of the difference in signs of the focal length, there is no focal point between the lenses and the distance between the lenses is shorter than in the keplerian model. Laser beam expanders edmund optics laboratory 2 laser beam expanders edmund optics laser beam expanders edmund optics smaller spot size in laser designation. Global, beam expander type : Because of the difference in signs of the focal lengths there is no focal point between the lenses and the distance between the lenses is shorter than in the keplerian model. They are adaptable for complex applications requiring increased power density at the focal point, beam guidance over long distance, dual wavelengths (1064nm and 532nm), high power laser. Galilean beam expander a simple galilean telescope also consists of 2 lenses, one with a positive focal length and one with a negative focal length. The global galilean beam expander market is segmented by company, region (country), by type, and by application. All adjustments can be made quickly and easily by hand using our unique zoom and focus scale engraved directly onto the beam expander. Keplerian vs galilean beam expander. The main types of beam expanders: Our engineers can design a custom beam expander solution to fit your application. This creates a spot of concentrated energy within the beam expander which heats the air within the system and deflects light from it's optical path. The report analyzes the galilean beam expander market over the values, historical pricing structure, and volume trends that make it.
Furthermore, the report provides a detailed statistical overview in terms of trends outlining the geographical opportunities and contributions by prominent. Because of the difference in signs of the focal lengths there is no focal point between the lenses and the distance between the lenses is shorter than in the keplerian model. Posted on february 24, 2020 by sandra. A beam input into the diverging lens propagates to the converging lens without reaching an intermediate focal point. Global, beam expander type :
Optical Formulas Ultiquest Technology from www.ultiquestcom.com The global galilean beam expander market is segmented by company, region (country), by type, and by application. Because of the difference in signs of the focal length, there is no focal point between the lenses and the distance between the lenses is shorter than in the keplerian model. The main types of beam expanders: A beam input into the diverging lens propagates to the converging lens without reaching an intermediate focal point. The beam divergence is dependent upon the diameters of the input and output laser beams. Laser beam expanders edmund optics. Figure 1 galilean beam expander. Align the lens by raising or lowering the post holder and sliding the lca so that the diverging beam is centered on the mirror of the second steering assembly.
A two singlet galilean, design would allow each of the following possible stock lens combinations:
These galilean design beam expanders provide an adjustable focus for collimation at varying wavelengths, and to control divergence correction and focusing. Global, beam expander type : In a keplerian beam expander the input beam is focussed to a point between the two lenses. Our engineers can design a custom beam expander solution to fit your application. Pact water cooled beam expander variable zoom laser beam expanders laser beam expander beam expanders experiment 3 expanding laser beams. Posted on february 24, 2020 by sandra. A refracting telescope commonly used is the galilean telescope which can function as a simple beam expander for collimated light. In its simplest form, the galilean type consists of a A two singlet galilean, design would allow each of the following possible stock lens combinations: Again, the lenses are separated by the sum of their focal lengths, except that in this case the diverging lens has a negative focal length. 38 beam expander from 2 manufacturers listed on gophotonics. In systems with a long beam path, they are used to keep the beam collimated. Beam expanders are used in many applications such as laser ranging, laser illumination, interferometry, etc.
A simple galilean telescope also consists of 2 lenses, one with a positive focal length and one with a negative focal length galilea. The main types of beam expanders:
